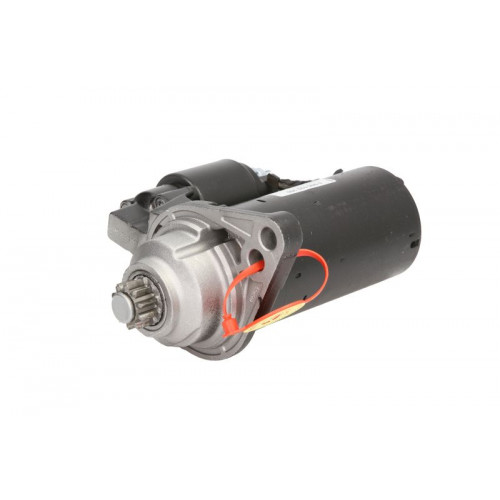

Starter starter 12V 17kW fits. AUDI A3 SEAT ALTEA ALTEA XL CORDOBA IBIZA III IBIZA IV IBIZA IV SC LEON TOLEDO III SKO SKODA FABIA II (542), Hatchback, 12.2006 - 12.2014 BOSCH 0 986 020 250

Starter starter 12V 17kW fits. AUDI A3 SEAT ALTEA ALTEA XL CORDOBA IBIZA III IBIZA IV IBIZA IV SC LEON TOLEDO III SKO SKODA FABIA II (542), Hatchback, 12.2006 - 12.2014 BOSCH 0 986 020 250
FITS THE FOLLOWING MODELS: TDI 1.9 (2007-2010) Diesel 77Kw/105Hp, BLS, BSW
TDI 1.4 (2007-2010) Diesel 59Kw/80Hp, BMS, BNV
Technical specifications: Voltage: 12
Number of teeth: 11
Number of teeth: 10
Electromotor power: 1.7 < br> Length: 246
Bore-?: 12.5
Position/Grades: links
Clamp: 50
Clamp: 30
Direction of rotation: counter-clockwise rotation
Flange diameter: 76.2
Number of threaded holes: 0
Bore-? 2: 12.5
Bore-? 3: 12.5
Starter variant: free return
Number of fixing holes: 3
Fixing angle (Degrees): 44
Initial position-Pinion: 52.5
Angular size of fixing hole: 44
OE CODES: 3165143526569 ; ; 02Z911023FX; 02Z911023F; 02Z911023HX; 02Z911023H; 02Z911024J; 02Z911023F; 02Z911023H; 02Z911024J; 02Z911023F; 02Z911023H; 02Z911024J; 02Z911023FX; 02Z911023HX; TT15323; 02Z911023F; 02Z911024J; 02Z911023H; 02Z911023H; 02Z911023F
